The Ultimate Guide To Ringlock Scaffolding Components: Parts, Specs, And Engineering Secrets

Discover the essential ring lock scaffolding parts that ensure job site safety. From strict adherence to ANSI/SSFI & EN standards, this guide by Brilliance Solution breaks down every system scaffold component you need.

Introduction: Beyond the Basics of System Scaffolding

In the high-stakes world of construction, the difference between a project that runs on time and one that faces delays often comes down to the quality of your equipment. Ringlock scaffolding systems have become the industry standard for a reason: they offer unmatched versatility and load-bearing capacity.

But a system is only as strong as its weakest link. Whether you are a building contractor in the US or a procurement manager in Southeast Asia, understanding the specific specifications of ring lock scaffolding parts is non-negotiable.

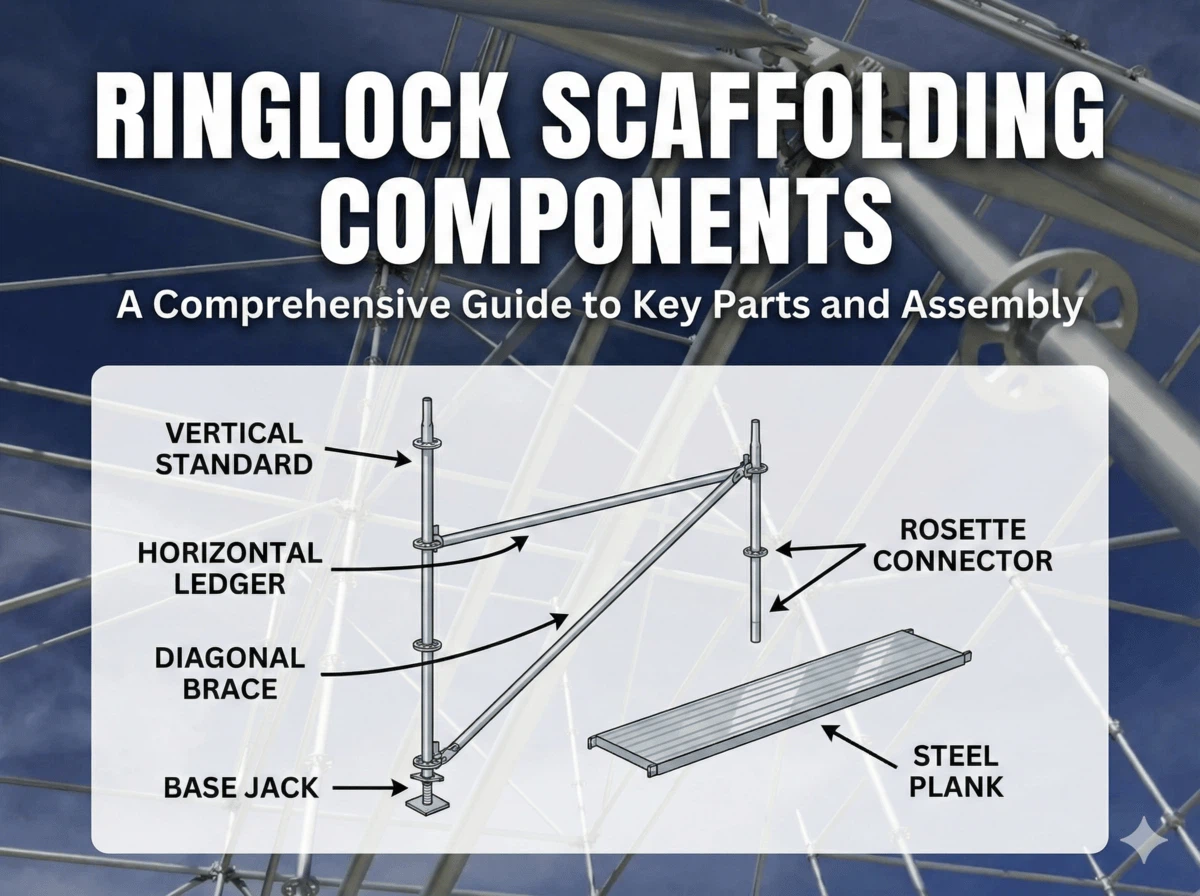

In this guide, we are going deeper than the brochures. As a manufacturer operating our own automated factories, we will break down the anatomy of system scaffold components, explain the critical importance of meeting ANSI/SSFI and EN12810 safety standards, and help you identify high-quality scaffolding pieces that guarantee structural integrity.

1. The Backbone: Vertical Standards (Rosette Standards)

The vertical standard is the primary load-bearing component of the scaffolding ring lock system. It dictates the height and stability of your structure. Unlike traditional frame scaffolding, which relies on pre-fixed dimensions, ringlock standards offer flexible node points every 500mm.

Ringlock Vertical Standards

The Brilliance Standard:

According to our engineering data, high-quality standards must be manufactured from Q355 steel to handle vertical compression effectively.

• The Rosette: Welded every 500mm along the tube, the rosette is the "brain" of the system. It allows for up to 8 connections at a single node, enabling complex geometries.,

• The Spigot: Located at the top, this internal connecting pin ensures seamless vertical alignment when stacking towers.

Size Chart of the Ringlock Vertical Standard with Spigot

Unlike assemblers who outsource, Brilliance Solution manufactures standards in our own facility. We utilize automated robotic welding for the rosettes, ensuring that every weld point achieves maximum penetration. This strict quality control eliminates the risk of "cold welds" that can fail under heavy loads.

2. The Connectors: Ledgers (Horizontal Members)

Ledgers connect the vertical standards horizontally, defining the width and length of the scaffold bay. But they do more than just space the tower; they provide vital lateral support and support the decking.

When selecting system scaffold parts, pay close attention to the ledger ends (heads). They must be cast steel to withstand the constant hammering of wedges.

• Wedge Lock: The defining feature of ring lock scaffolding parts. The wedge slides into the rosette and is hammered tight, creating a rigid connection that resists vibration.
• Tube Material: Typically Q235 Steel.
• Surface Treatment: Available in Hot Dip Galvanized or Powder Coating or Painted.

Global Compatibility: Metric vs. Imperial Standards One size does not fit all. Scaffolding grids vary significantly by region. European and Asian markets typically utilize the Metric System (e.g., 2.0m or 2.5m bays), while North American markets often require Imperial sizes (e.g., 7ft or 8ft bays).

At Brilliance Solution, we understand these nuances. While our standard automated lines produce Metric sizes, we offer full customization to manufacture ledgers that fit specific US or UK grid requirements.

3. Diagonal Braces: The Stability Factor

Never underestimate the diagonal brace. In a ringlock scaffolding system, these turn a rectangle into a rigid triangle, preventing the tower from swaying or twisting (racking) under wind loads or crane movement.

Ringlock Diagonal Brace

Specifications: Our diagonal braces utilize Q235 steel and are hot-dip galvanized.

Design: They connect to the large holes on the rosette, allowing the brace to align perfectly with the geometry of the bay size (e.g., a 2.0m x 2.0m bay).

4. The Platform: Steel Planks & Decks

The "floor" of your workspace. While some regions still use timber, professional B2B buyers are shifting to steel planks for longevity and safety.

Why Steel Beats Wood:

1. Fire Safety: Steel does not burn.

2. Longevity: Galvanized steel lasts 10+ years; wood rots in 2.

3. Traction: Brilliance steel planks feature a punched, non-skid surface design.

Hook Specs: We offer hooks with 43mm or 50mm inner diameters to fit different pipe standards.

Thickness: Available in 1.0mm to 2.0mm thickness depending on required load rating.

Customization is Key:

Every project is different. While standard width is often 210mm-300mm, hooks need to fit your ledger. At Brilliance, we understand that one size doesn't fit all. We offer fully customizable steel planks-from length (1000mm-4000mm) to specific hook profiles-ensuring our components fit seamlessly with your existing inventory. This attention to detail extends to our raw material sourcing, where we select only premium steel profiles for production.

5. The Foundation: Adjustable Jack Bases

Ringlock accessories

Fixed Base Jacks

Gravity brings all loads down to one point: the ground. The Adjustable Jack Base is critical for leveling the scaffold on uneven terrain.
Solid vs. Hollow: For heavy-duty industrial projects (like power plants), we recommend 38mm Solid Jacks. For lighter commercial work, 38mm Hollow Jacks offer ease of handling.
Adjustment Range: Typically allows for 600mm of adjustment, helping you start level even on a slope. For a deeper dive into how these differ from U-heads, read our guide on the difference between U-head and base jacks.
It is also vital to use proper base plates if you are not using adjustable jacks, ensuring the load is distributed evenly across the mudsills.

6. Expanding the Workspace: Side Brackets (Hop-Up Brackets)

Sometimes, the standard bay width just isn't enough. Whether you need to bridge a gap to the building wall or create a cantilevered walkway for masonry work, Side Brackets (also known as Hop-Up Brackets) are the solution.

These triangular components clamp onto the vertical standards using the wedge lock system, instantly extending your working platform without altering the main tower structure.

Key Specifications: Unlike the main structural components, side brackets are designed for cantilevered loads. We manufacture them using Q235 Steel to balance weight and strength.

Design: Reinforced triangular geometry to prevent deflection under load.

Connection: Integrated wedge head for secure attachment to the Rosette.

Durability: Finished with Hot Dip Galvanization (HDG) or Electro-galvanization to match your system's lifespan.

While the 680mm bracket is a standard size, job sites often require specific extensions (e.g., 0.5m or 0.73m board bearers). At Brilliance Solution, we can customize the bracket length and reinforcement angle to suit specific platform requirements, ensuring your steel planks fit perfectly every time.

Comparing Materials: The Engineering Reality

When sourcing system scaffold components, the grade of steel is the single biggest factor in cost and safety.

While aluminum is lighter, steel offers superior load-bearing capacity per dollar.

Fact: A standard Q355 steel vertical standard can support approximately 2.5 times the compressive load of a similarly sized aluminum tube, making steel the only viable choice for heavy-duty industrial shoring and high-rise construction.

Expert Verdict: How to Choose the Right Supplier

Navigating the market for scaffolding pieces can be overwhelming.

As an industry veteran, here is my advice for B2B buyers:

Check the Galvanization: Demand Hot Dip Galvanization (HDG). Electro-galvanized parts look shiny when new but rust within a year outdoors. HDG ensures 15+ years of life.

Verify the Steel Grade: Ensure your vertical standards are Q355 if you are building high. Ask for Mill Test Certificates.

Look for Factory Direct: Buying from a trading company adds 15-20% to your cost and muddies the communication channel regarding quality.

Brilliance Solution isn't just a factory; we are a strategic partner. From raw material sourcing to strict pre-shipment inspection and fast delivery, we control the entire chain. Whether you need a single container of replacement parts or a complete system design for a bridge project, our team is ready to execute.

Conclusion

Investing in high-quality ringlock scaffolding components is an investment in your company's reputation and your workers' safety. Don't compromise on the specs.
