What is the Heavy Duty Scaffold Props?

• Heavy Duty Scaffold Props are high-load adjustable steel props designed for demanding formwork and shoring applications-where stability, thread strength, and long service life matter most. Brilliance supplies factory-direct heavy duty steel props for contractors, formwork companies, and rental fleets, with strict QC, consistent welding, and fast export delivery.

Thread reliability

Weld integrity

Consistency across batches







1) Stronger threads for repeated use

For heavy duty props, thread quality determines safety and lifespan. We focus on tight thread fit, smooth adjustment, and durable nuts to reduce stripping risk and minimize maintenance costs for rental fleets.

2) Stable support under tough site conditions

Heavy duty steel props are commonly used on high-cycle jobs where props are frequently moved, re-used, and exposed to impacts. Our design emphasizes robust tubes, solid bearing plates, and reliable weld integrity to keep your support system stable.

3) Export-ready consistency

Every batch follows a controlled process from raw steel inspection to coating and final dimensional checks. This helps you avoid "mixed quality" in containers and ensures consistent site performance across projects.

Key Components Of A Scaffolding Prop

A heavy duty steel prop is engineered around a few critical components that determine its load performance, stability, and service life-especially for high-cycle rental use and demanding formwork jobs.

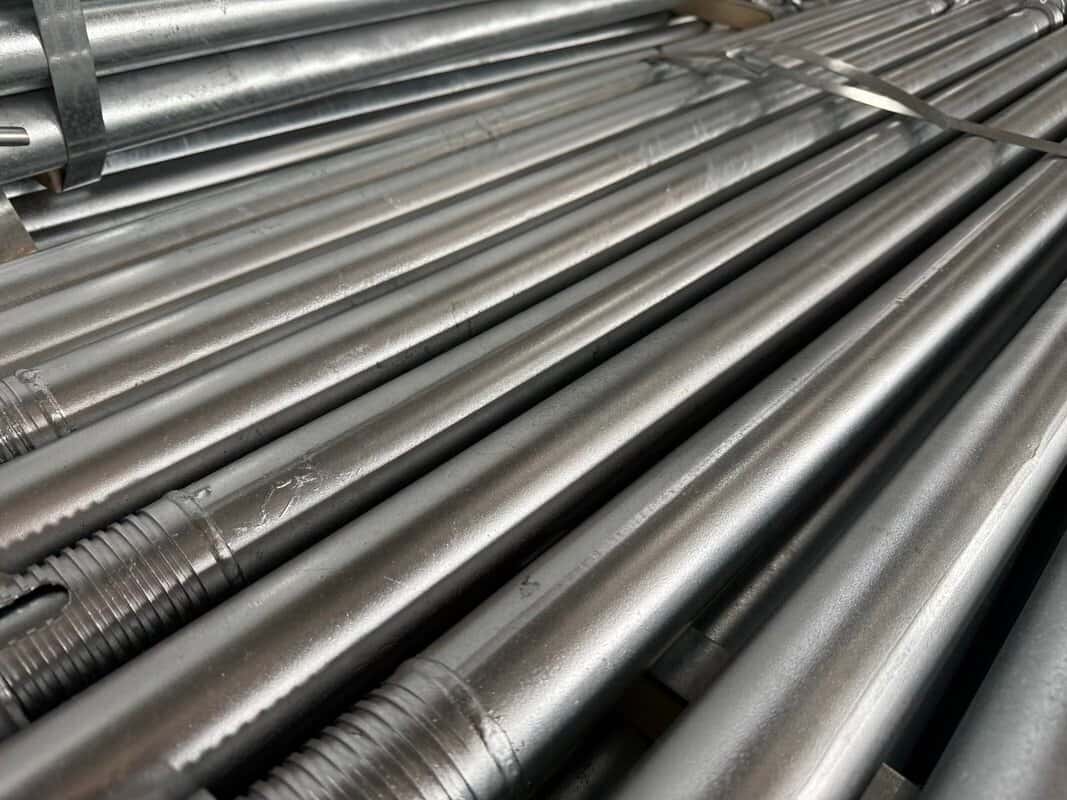

1) Outer Tube (Main Sleeve)

The outer tube is the primary load-bearing body. Its OD, wall thickness, and straightness directly affect buckling resistance and overall stability. Heavy duty props typically use thicker-wall tubes to handle tougher site handling and longer reuse cycles.

2) Inner Tube (Adjustable Tube)

The inner tube slides inside the outer tube to achieve the required working height. The fit between inner and outer tubes should be smooth but tight enough to reduce wobble. Hole alignment and tube roundness matter for fast installation and safer support.

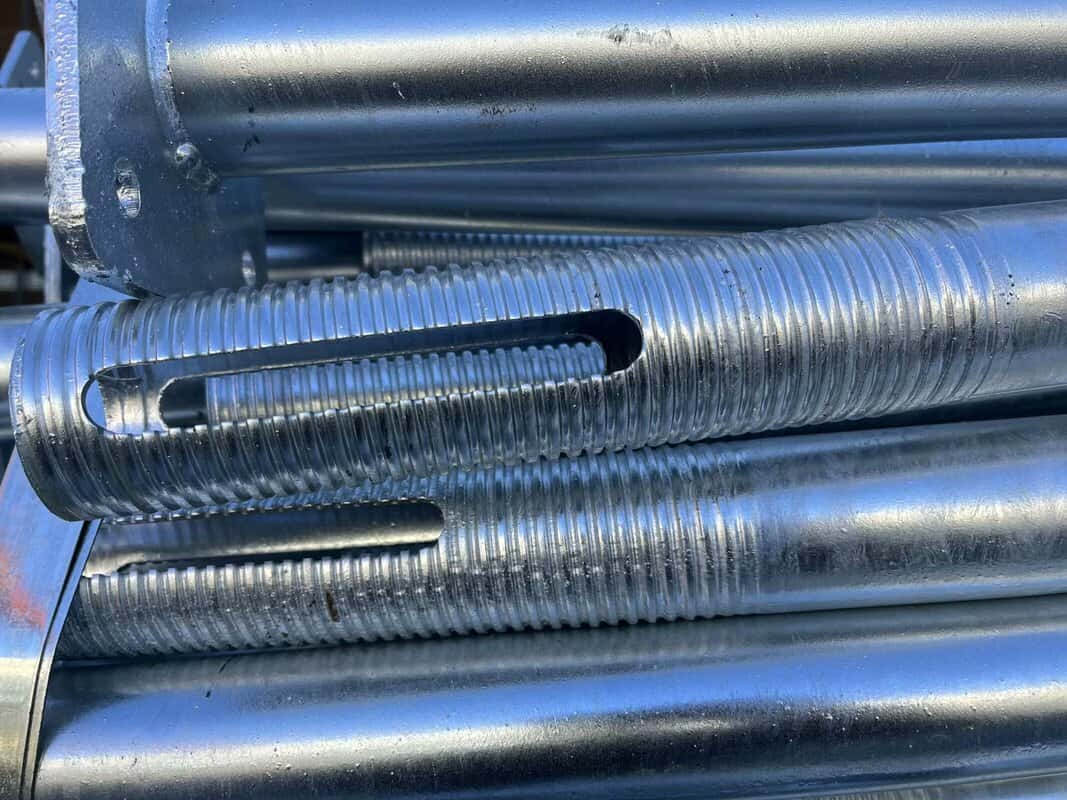

3) Threaded Stem (Screw / Spindle)

This is the heart of adjustability. The stem controls fine height adjustment and carries high localized stress at the threads. For heavy duty props, strong thread profile and consistent machining/rolling quality help reduce stripping risk and maintain reliable adjustment after repeated cycles.

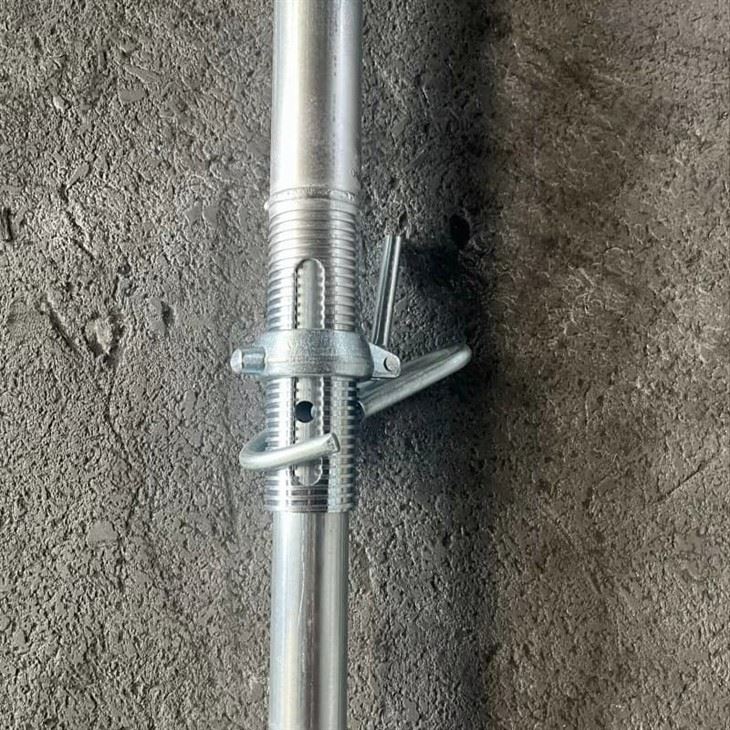

4) Prop Nut (Cup Nut / Sleeve Nut)

The nut transfers load from the threaded stem into the prop body. Common options include cup nuts and sleeve nuts (in forged/steel or cast iron). A quality nut has clean threads, good engagement length, and stable bearing surfaces-minimizing slippage and extending service life.

5) Locking Pin & Adjustment Holes

The pin takes the initial height setting and prevents sudden drop during adjustment. Well-made props use accurate hole spacing, a properly sized pin, and secure pin retention. This improves installation speed and reduces on-site risk.

6) Base Plate (Foot Plate)

The base plate spreads load to the ground/sole board. Plate size, thickness, and weld quality determine bearing stability and resistance to deformation. A heavy duty plate helps reduce bending when props are moved frequently or used on uneven surfaces.

7) Top Plate / Head (Flat Plate / U-Head / Fork Head)

The head connects the prop to the formwork beams or timber. Options include flat top plates, U-heads, or fork heads, selected by your formwork layout. The key is weld integrity and correct geometry to prevent beam slip.

8) Welded Collars & Reinforcement Parts (If Applicable)

Depending on design, collars, sleeves, or reinforcement rings improve fit-up and durability at stress concentration zones. These components help props stay stable under impact and repeated repositioning.

9) Surface Finish (Protection Layer)

Finish impacts corrosion resistance and long-term cost: painted, powder coated, pre-galvanized, or hot dip galvanized. For outdoor storage, coastal sites, and long rental cycles, higher corrosion protection typically reduces replacements.

To ensure stable performance for heavy duty scaffold props, we typically apply:

• Incoming raw material checks (steel grade, dimensions)
• Dimensional inspection of tubes, plates, and key fit-up
• Thread/nut fit checks (smooth adjustment, no wobble)
• Weld visual inspection (and additional testing upon request)
• Coating/finish inspection (coverage, adhesion, appearance)
• Packing inspection before loading (labels, bundles, protection)

You can visit our scaffolding quality control page for more information.

For fast quotation, send: height range, tube OD & thickness, nut type, finish, quantity, and destination port.

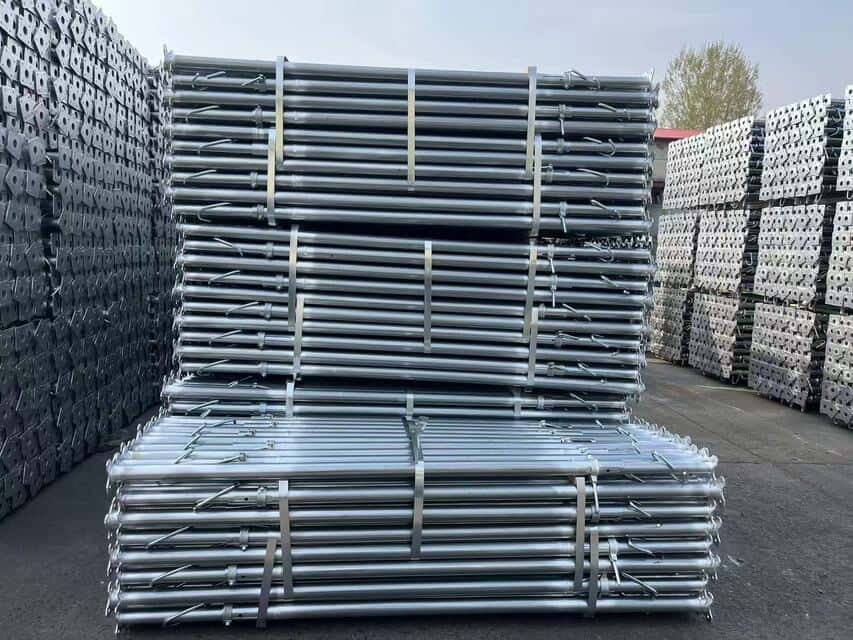

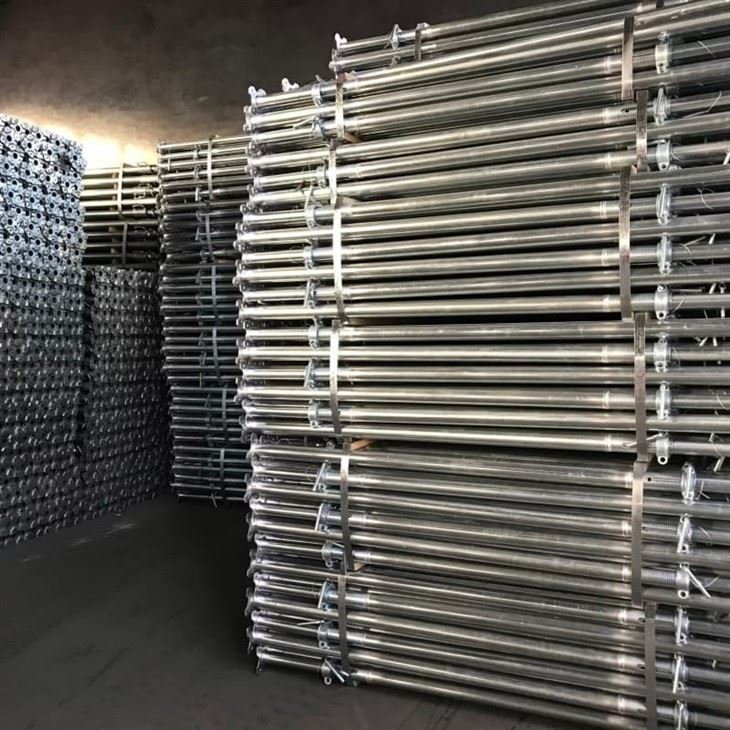

We pack heavy duty steel props in export-safe bundles or steel pallets to reduce damage during transport and unloading.





Q1: What is "Heavy Duty Scaffold" in this page?
A: Here it refers to heavy duty adjustable steel props / shoring props used for formwork support, not a complete scaffold frame system.

Q2: How do I choose the right height range?
A: Tell us your typical slab height and working adjustment needs; we will recommend the best min–max range for stability and reuse.

Q3: Painted or hot dip galvanized-what should I pick?
A: Painted suits cost-sensitive indoor cycles; hot dip galvanized is recommended for outdoor, coastal, or long-life rental fleets.

Q4: Can you supply nuts, tripods, forks, and spare parts?
A: Yes. We can provide compatible accessories and spare parts sets for long-term partners.

Q5: What information is needed for a quote?
A: Height range, tube OD/thickness, nut type, finish, quantity, packing, and destination port.

Get a Quote for Heavy Duty Scaffold Props

Send us:
Required height range (min–max)
Tube OD & thickness (or your market standard)
Finish (paint / HDG / powder)
Quantity + destination port
We will reply with quotation, lead time, and packing details.
