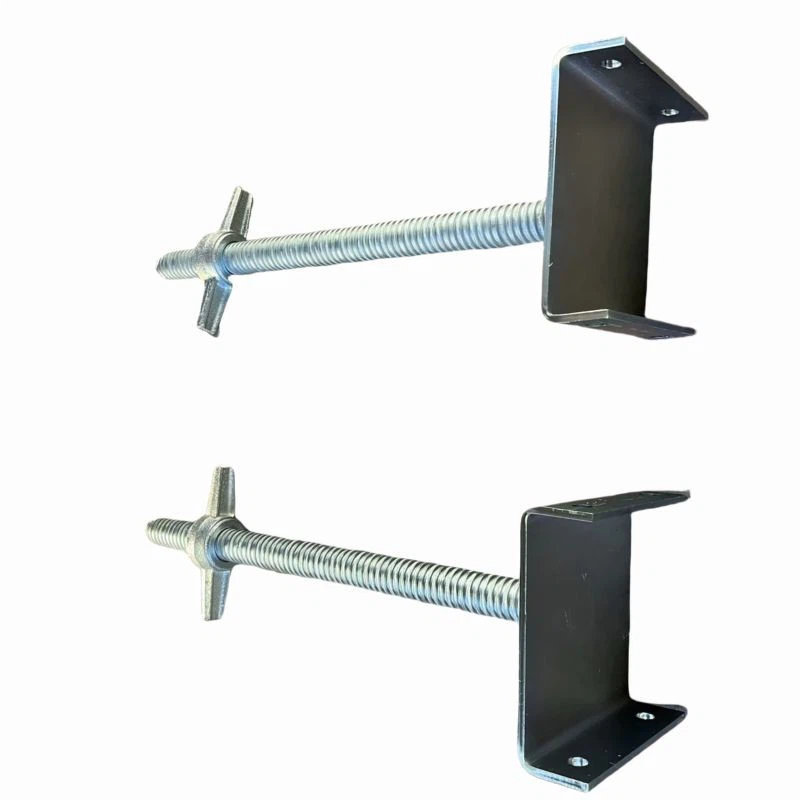

adjustable scaffolding u head jack and base jack for construction
Scaffold Base Jacks are used as the base for scaffolding bays, in which standards are put on. Provide stability by adjusting the level of the bay on uneven ground.Adjustable screw jack base can be used in engineering construction, bridge construction, and used with all kinds of scaffold, play the role of top and bottom support.The surface treatment :hot dip galvanized or electro galvanized .Head base is usually U type,the base plate is usually square or customized by customer.The most common size of scaffold adjustable base jacks are OD38mm scaffold adjustable base jacks.OD30mm scaffold adjustable base jacks are compatible with walk-through, ladder, and other traditional scaffolding frames. Frame scaffolding can also use OD 32-36mm adjustable base jacks. Heavy Duty Shoring Scaffolding System has selected to employ OD 48mm scaffold adjustable base jacks.
|
1 |
Product |
Base Jack & U Head Jack |
|
2 |
Type |
Solid, Hollow |
|
3 |
Material |
Solid-Q235 round bar Hollow-seamless pipe, welded pipe |
|
4 |
Finish |
Hot Dip Galvanized, electrol-galvanized, powder coated |
|
5 |
Diameter |
30/32/34/38/48mm |
|
6 |
Regular Length |
600mm |
|
7 |
Regular Plate Size |
150*150*6mm |
|
8 |
Regular u Head Size |
180*150*50*6mm |
Advantages
1.We use semless tube which is more strength.
2.We have our own shell casting factory for jack nut production with high quality control.
3. Automatic Production Lines, such as formwork & scaffolding Automatic Auto-Welding Lines, Screw Jack Auto-Welding Lines, Shoring Prop Auto-Welding Lines etc., also different types of Punching Machines.
4. Our fatory certified EN 1090 by SGS, and we have internation welding engineer and welding workers with many years experiences.
Customized sizes, manufactured according to customer requirements
Packing & Delivery
Plywood Cases, Ton Bags
|
Name |
Jack Size (mm) OD*Length |
Base Plate (mm) |
|
Solid Base Jack |
28/30/32/34/38*(400-1000) |
120*120*(3.5-8) |
|
140*140*(3.5-8) |
||
|
150*150*(3.5-8) |
||
|
Solid U-head Jack |
150*120*50*(3.5-8) |
|
|
150*150*50*(3.5-8) |
||
|
180*150*50*(3.5-8) |
||
|
130*170*50*(3.5-8) |
||
|
Hollow Base Jack |
34/36/38/48*(400-1000) |
120*120*(3.5-8) |
|
140*140*(3.5-8) |
||
|
150*150*(3.5-8) |
||
|
Hollow U-head Jack |
150*120*50*(3.5-8) |
|
|
150*150*50*(3.5-8) |
||
|
180*150*50*(3.5-8) |
||
|
130*170*50*(3.5-8) |
